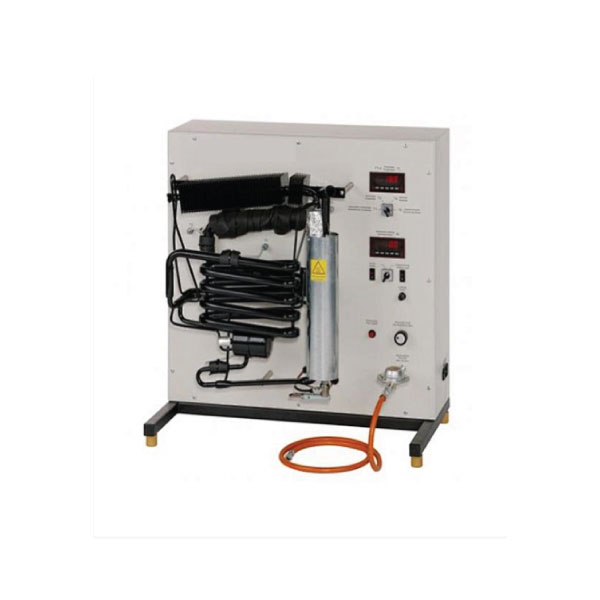

VAPOR ABSORPTION TYPE TRAINER MODEL : LI-RFVEP78

Description

Application:

Device demo’s structure and composition of the absorption refrigeration system. Vapor absorption type trainer model help user to understanding
principle of refrigeration elements and working principle of absorption refrigeration. The system consists of
condenser, evaporator, absorber, generator, liquid storage tank, etc. Trainer equips with leakage protection
part, electric heater, digital display voltage meter, ammeter and thermometer. The system is real and
complete.

TECHNICAL PARAMETER

Input power:
Single phase three wire AC220V ±10% 50Hz
Installed capacity: 􀊻100W External dimensions:
670mm×570mm×520mm Service
substance: hartshorn
Net weight: 15Kg (Approximate)

TRAINING ITEMS OF VAPOR ABSORPTION TYPE TRAINER MODEL

1. Understanding the structure and
composition of absorption refrigeration
system
2. Understanding the structure principle of
each component of absorption refrigeration
system
3. To understand the function of each
component of absorption refrigeration
system.

4. To understand the working principle of each
component of absorption refrigeration system
5. Understanding of the working principle of
absorption refrigeration system.
6. Analysis and trouble-shooting of common faults
in absorption refrigeration system.

Accessories Of Vapor Absorption Type Trainer Model:

Experimental Manual : 1copy
Connecting Cord : 1 Set.
And other related Standred accessories.

Others:

Brand : Labinnova
Country Of Orgine: China
Manufacturing : Assemble In Bangladesh
Training 2 Days
Warranty: One Year.
